Exhibition Hall Information

The 50,000m² exhibition space, the largest in Japan, can be used to hold large scale exhibitions. Halls B through F can be used as a single hall or as five halls in one. (10,000 to 50,000m²) The exhibition halls are equipped with the latest technology.

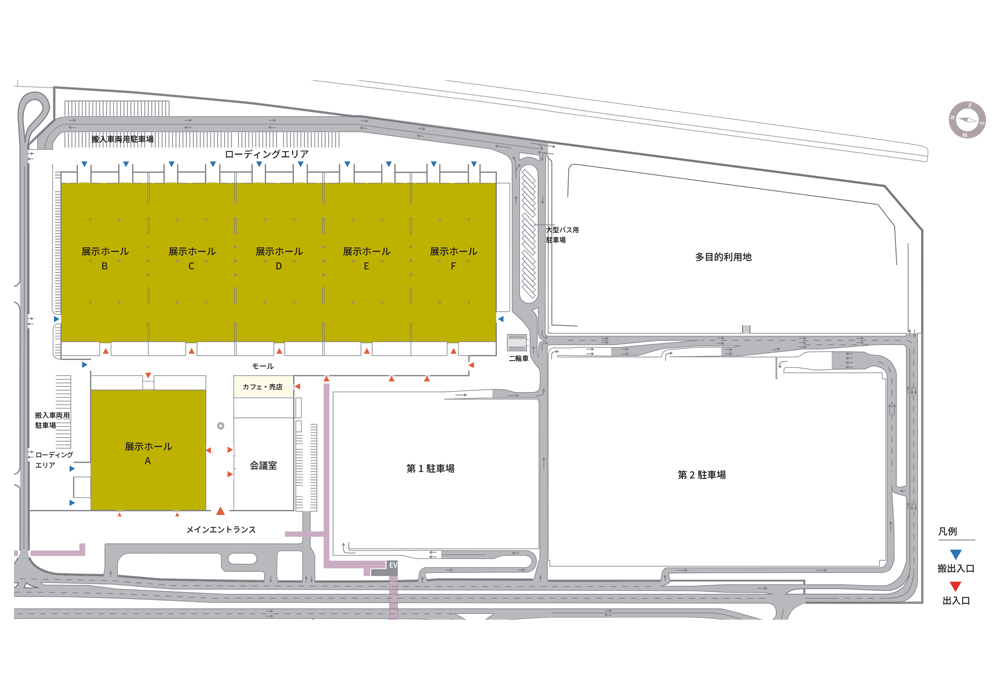

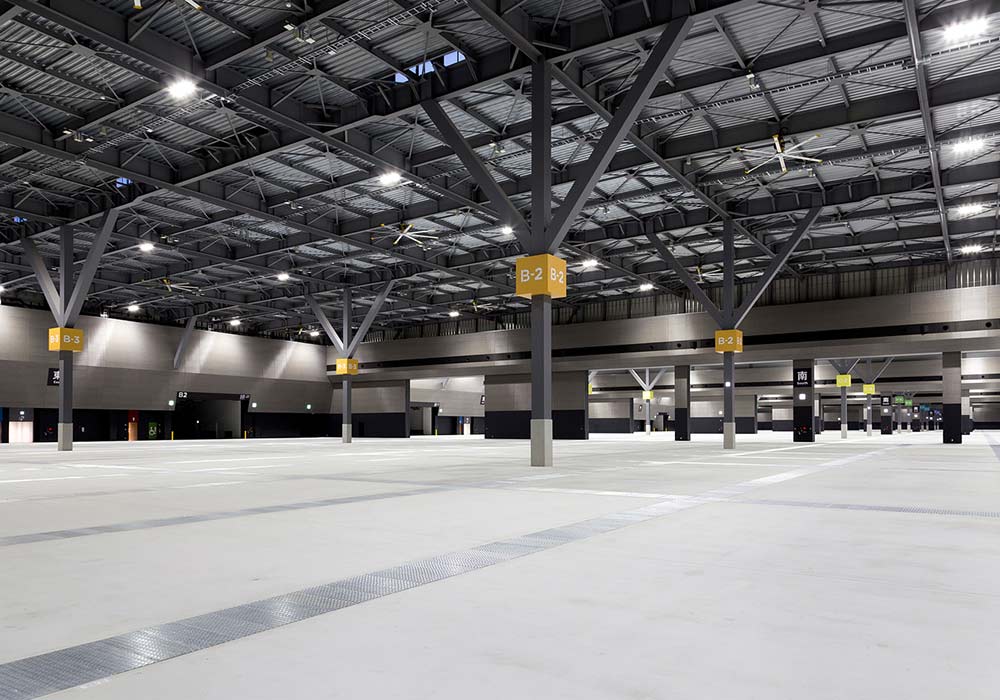

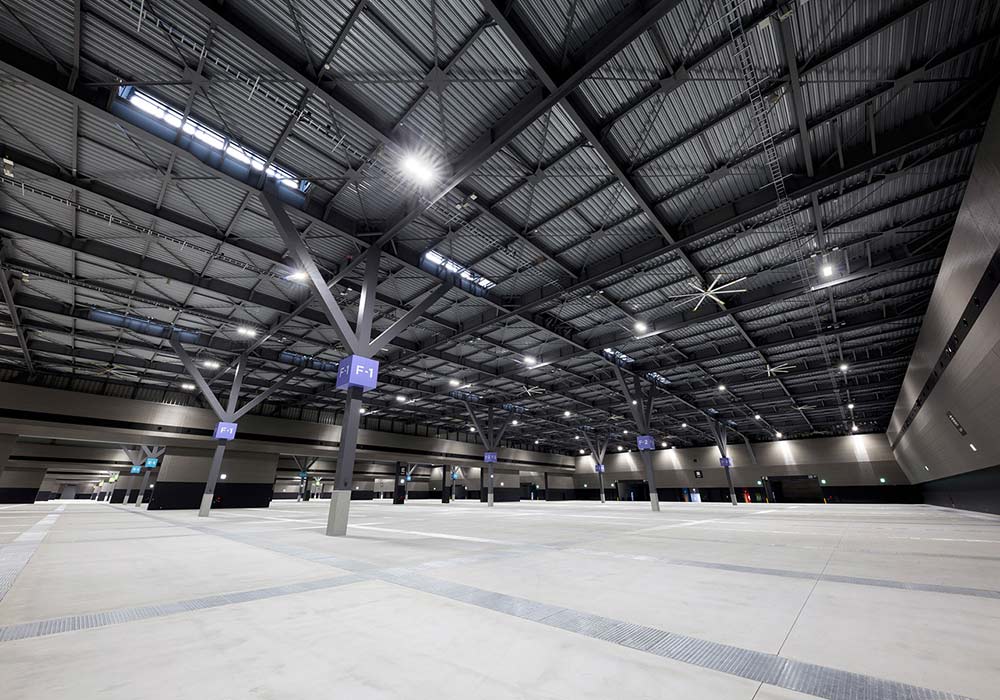

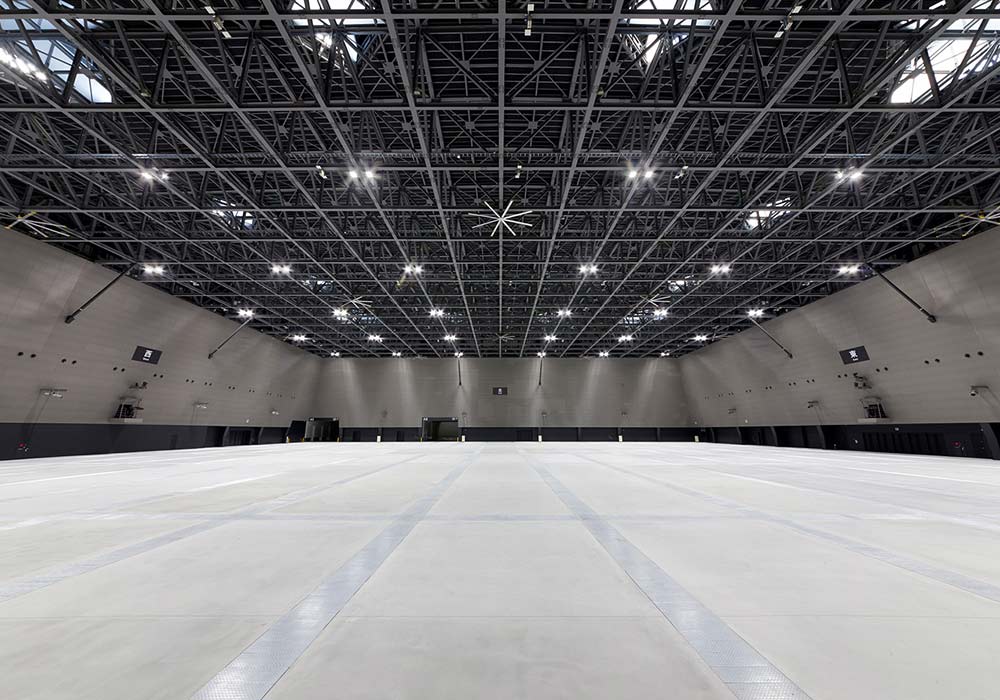

Introduction to Exhibition Halls A - F
Outline of Exhibition Facilities

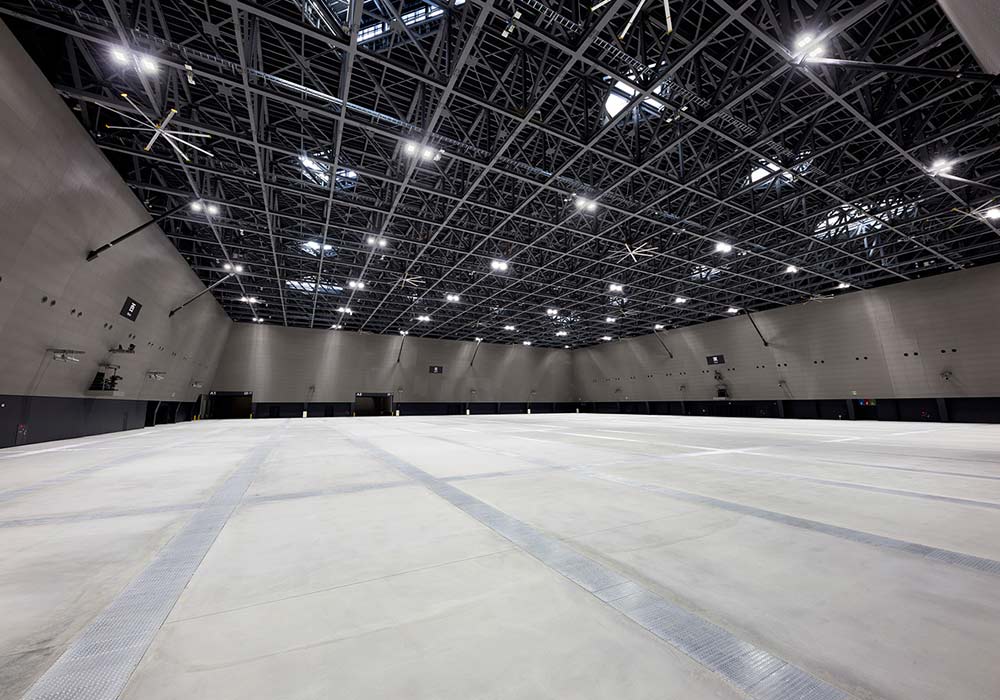

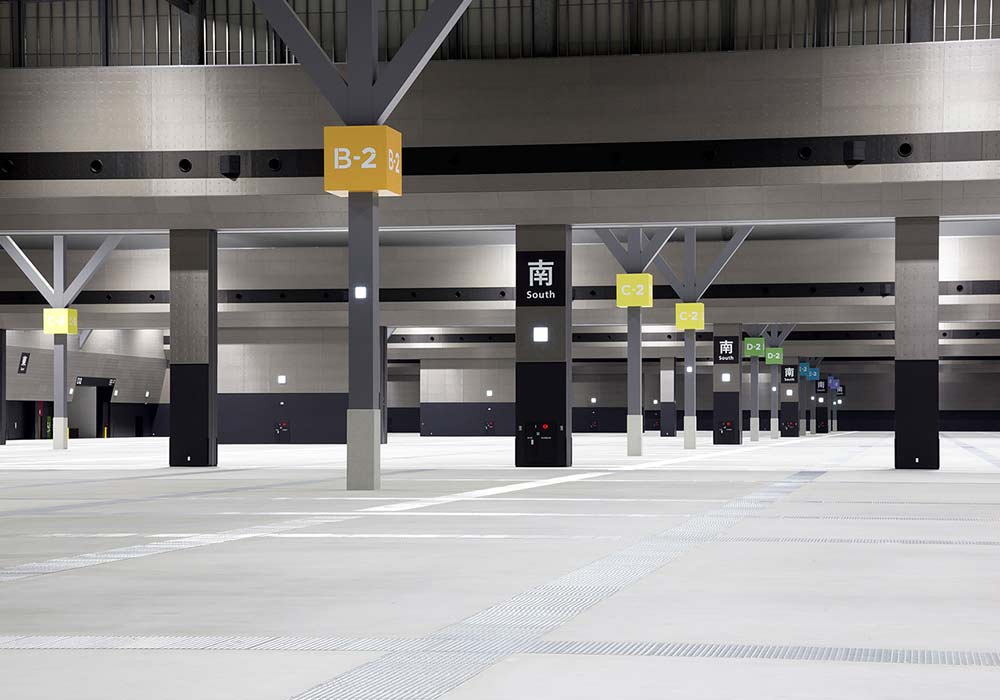

Hall A Hall B Hall C Hall D Hall E Hall F
Exhibition Area Approx. 10,000 m2 Approx. 10,000 m2 Approx. 10,000 m2 Approx. 10,000 m2 Approx. 10,000 m2 Approx. 10,000 m2
Length and Width 100m×100m 132m×76m 132m×76m 132m×76m 132m×76m 132m×76m
Patio Height (under the beam) 20m 14m 14m 14m 14m 14m
Floor Loading Conditions local 50 kN/m2, average 30 kN/m2, pit beam 12.5 kN/m2
Installation of anchor bolts Permitted (core rod driven all anchor φ16mm, depth 50mm or less)
carry-out entrance A1(w:10.0m、h:5.0m)、A2(w:10.0m、h:5.0m) B-F1(w:10.0m、h:5.0m)、B-F2(w:10.0m、h:5.0m)、B・F3(w:6.0m、h:8.0m)
other rooms and waiting rooms organizer’s office, business meeting rooms (1) and (2), multipurpose room, rest room, waiting room, hot water supply room, changing room, shower room organizer’s office, business meeting rooms (1) and (2), multipurpose room, hot water supply room, changing room, shower room, organizer’s storage room
